4 Conductor with Ground VFD Cable
Three power conductors plus one green/yellow ground
4 Conductor with Ground (4C) VFD cables are designed for standard 3-phase motor terminations, featuring three power conductors plus a green/yellow ground conductor. Common constructions include foil tape and copper braid shields as well as in accordance with NFPA 79 (2018), Section 4.4.2.8, XLPE insulation engineered to withstand the high switching frequencies between VFDs and motors. Four conductor VFD cables are available in flexible constructions for fixed installations and high-flex designs for continuous motion applications. Right Hand Industrial provides brand-neutral guidance to help you select the correct VFD cable for your application.
4 Conductor VFD Cable Types
Search ALL 4-Conductor VFD Cable Configurations
Click desired product for more information
4 Conductor VFD Cable Series
Elettrotek GAALFLEX® Tray VFD 1405
-
Jacket: PVC, black
-
Insulation: PVC / XLPE, black/numbered
-
Shielding: aluminum tape + foil + tinned copper braid
-
Voltage: 600V / 1000V
-
Certifications: UL Flexible Motor Supply, WTTC, TC-ER; CE
-
Range: AWG 14 – 350 MCM, 4 conductors
Elettrotek GAALFLEX® Tray VFD 1530
-
Jacket: TPE, black
-
Insulation: XLPE, black/numbered
-
Shielding: foil, tinned copper braid and drain wire
-
Voltage: 600V / 1000V
-
Certifications: UL Flexible Motor Supply, WTTC, TC-ER, AWM; CE
-
Range: AWG 16 – 2, 4 conductors
HELUKABEL TOPFLEX® 600 VFD
-
Jacket: PVC, black
-
Insulation: XLPE, black/numbered
-
Shielding: foil + tinned copper braid
-
Voltage: 600/1000V
-
Certifications: UL TC-ER, WTTC, FLEXIBLE MOTOR SUPPLY, CSA, CE
-
Range: AWG 18 -2; 4 conductors
BELDEN Classic 300% VFD
-
Jacket: PVC, black
-
Insulation: RHW-2, black/numbered
-
Shielding: foil + tinned copper braid + drain wire
-
Voltage: 600V / 1000V
-
Certifications: UL Flexible Motor Supply, WTTC, CSA AWM, TC-ER; CE
-
Range: AWG 14 – 2 AWG; 4 conductors
LUTZE DRIVEFLEX® VFD, A106
-
Jacket: PVC, black
-
Insulation: XHHW-2, black/numbered
-
Shielding: foil tape + tinned copper braid + drain wire
-
Voltage: 600V / 1000V
-
Certifications: UL Flexible VFD Servo, TC-ER-JP, AWM 105C°
-
Range: AWG 18 – 8; 4 conductors
LUTZE DRIVEFLEX® VFD, A216
-
Jacket: PVC, black
-
Insulation: RHW-2, black/numbered
-
Shielding: foil + tinned copper braid + drain wire
-
Voltage: 600V / 1000V
-
Certifications: UL Flexible VFD Servo, TC-ER-JP, AWM 105C°
-
Range: AWG 16 – 2; 4 conductors
LUTZE DRIVEFLEX® XLPE Hydro, A110
-
Jacket: PVC, black
-
Insulation: XHHW-2, black/numbered
-
Shielding: UNSHIELDED
-
Voltage: 600V / 1000V
-
Certifications: UL Flexible VFD Servo, TC-ER-JP, WTTC, AWM 105C°
-
Range: AWG 14 – 4/0; 4 conductors
Southwire VFD RHW-2 Spec 45440
-
Jacket: TPE, black
-
Insulation: RHW-2, black/numbered
-
Shielding: foil, tinned copper braid, drain wire
-
Voltage: 600/1000V
-
Certifications: UL TC-ER, Flexible Motor Supply, CSA, CE
-
Range: AWG 16 – 2 AWG; 4 conductors
LAPP OLFLEX® VFD SLIM
-
Jacket: special TPE, black
-
Insulation: “Lapp Surge Guard”, black
-
Shielding: foil + tinned copper braid
-
Voltage: 600/1000V
-
Certifications: UL TC-ER, MTW, WTTC, AWM, CSA, CE
-
Range: AWG 18 -2; 4 conductors
LAPP OLFLEX® VFD XL
-
Jacket: TPE, black
-
Insulation: XLPE, black
-
Shielding: foil + tinned copper braid
-
Voltage: 600/1000V
-
Certifications: UL TC-ER, MTW, WTTC, AWM, CSA, CE
-
Range: AWG 18 -2; 4 conductors
TPC Trex-Onics® Low Capacitance VFD
-
Jacket: TPE, yellow
-
Insulation: XLPE, black/numbered
-
Shielding: tinned copper braid, drain wire
-
Voltage: 600V / 1000V
-
Certifications: UL TC-ER, WTTC, CSA, CE
-
Range: AWG 16 – 4 AWG; 4 conductors

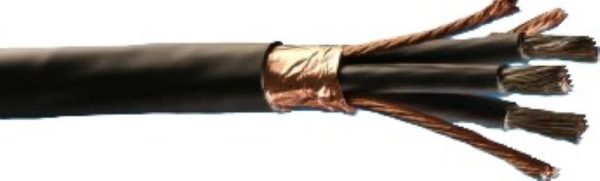

ALPHA Series V-Flex VFD Cable
-
Jacket: TPE, black
-
Insulation: XLPE, black/numbered
-
Shielding: foil + tinned copper braid
-
Voltage: 600 / 1000
-
Certifications: UL TC-ER, Flexible Motor Supply, CSA, CE
-
Range: AWG 16 -4/0; 3 conductors + 3 GNDs
SAB VFD XLPE TR D
-
Jacket: copolymer, black
-
Insulation: RHW-2, black/numbered
-
Shielding: foil + tinned copper braid + drain wire
-
Voltage: 600V / 1000V
-
Certifications: UL TC-ER-JP, WTTC, CSA, CE
-
Range: AWG 18 – 2; 4 conductors
SAB VFD XLPE TR Lean
-
Jacket: copolymer, black
-
Insulation: XHHW-2, black/numbered
-
Shielding: foil + braid
-
Voltage: 600V / 1000V
-
Certifications: UL TC-ER-JP, WTTC, CSA, CE
-
Range: AWG 18 – 8 AWG; 4 conductors
Continuous Flex VFD Cable Series
Igus chainflex® CF35.UL
-
Jacket: TPE, black
-
Insulation: XLPE, black and white numbers
-
Shielding: tinned copper braid
-
Voltage: 1000V
-
Certifications: UL / CSA AWM 90°C, CE
-
Range: AWG 20 – 4; 4 conductors
Igus chainflex® CF27.D
-
Jacket: TPE, orange
-
Insulation: XLPE, black and white numbers
-
Shielding: tinned copper braid
-
Voltage: 600/1000V
-
Certifications: UL / CSA AWM 90°C, CE
-
Range: AWG 19 – 1; 4 conductors and 4C + control pairs
LUTZE MOTIONFLEX® Motor TPE
-
Jacket: special TPE, black
-
Insulation: XLPE type XHHW-2, black
-
Shielding: tinned copper braid, flat braid drain wire
-
Voltage: 1000V
-
Certifications: UL TC-ER, AWM, Flexible Motor Supply, WTTC
-
Range: AWG 16 – 4; 4 conductors
Helukabel TOPSERV® 600 VFD
-
Jacket: TPE, orange
-
Insulation: XLPE, black/numbered
-
Shielding: tinned copper braid, drain wire
-
Voltage: 600V / 1000V
-
Certifications: UL TC-ER, Flexible Motor Supply, WTTC, CSA, CE; ECOLAB
-
Range: AWG 18 – 2 AWG; 4 conductors
BELDEN Classic 300% VFD Continuous Flex
-
Jacket: PVC, black
-
Insulation: XLPE type RHW-2, color code
-
Shielding: foil and tinned copper braid
-
Voltage: 600V / 1000V
-
Certifications: UL TC-ER, Flexible Motor Supply, WTTC, CSA AWM, CE
-
Range: AWG 16 – 8 AWG; 4 conductors
LAPP OLFLEX® FD VFD
-
Jacket: special TPE, black
-
Insulation: “Lapp Surge Guard”, black
-
Shielding: foil tape, tinned copper braid
-
Voltage: 600/1000V
-
Certifications: UL TC-ER, MTW, AWM, CSA, CE
-
Range: AWG 14 -10; 4 conductors
SAB VFD XLPE Auto TR Continuous Flex
-
Jacket: copolymer, black
-
Insulation: crosslinked PE, black and white numbers
-
Shielding: foil and tinned copper braid
-
Voltage: 600V / 1000V
-
Certifications: UL TC-ER, WTTC, AWM, CSA, CE
-
Range: AWG 16 – 4; 4 conductors
Igus chainflex® CF38
-
Jacket: TPE, black
-
Insulation: XLPE, black and white numbers
-
Shielding: tinned copper braid
-
Voltage: 1000V
-
Certifications: UL AWM 22351, CE
-
Range: AWG 16 – 4; 3 and 4 conductor
