Pendant and Reeling Cable
for remote controls and high flex cable reeling systems
Pendant and Reeling applications put a tremendous amount of stress on the cable. From pulling tension to abrasion with remote controls to cranes, these heavy duty cables are made to take it. Utilizing special PVC, PUR or rubber jackets in flat or round form, these cables are suitable for pendant and reeling applications. Let Right Hand Industrial find the proper cable for your application.
Reeling Cable
FLEXIDRUM® R 503, PUR, black
-
Jacket: PUR, black
-
Insulation: GAALTHERM® 585 insulation, black
-
Voltage: 1000V
-
Certifications: UL AWM 10492/21223, CE
-
Range: AWG 16 – 2/0; up to 36 conductors, 3 ground designs
Pendant Cable
LIFT-2S UL, PVC, yellow, flat pendant cable
-
Jacket: PVC, yellow
-
Insulation: special PVC/Nylon insulation, color code
-
Support: two galvanized steel core + black nylon covering
-
Voltage: 600V
-
Certifications: UL 2562 for pendant cables, CSA AWM
-
Range: AWG 16; up to 24 conductors

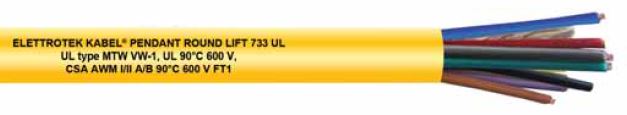

PENDANT ROUND LIFT 733 UL, PVC, yellow, round pendant cable
-
Jacket: PVC, yellow
-
Insulation: special PVC/Nylon insulation, ICEA Method 1-E2 (K-2)
-
Voltage: 600V
-
Certifications: UL 90C 600V, CSA AWM
-
Range: AWG 16; up to 36 conductors
Search ALL PENDANT and REELING Cable Configurations
Need a quote? Select desired configuration(s), Enter Quantity & click +Add to Inquiry
