Festoon Cable

for overhead crane and festoon cable systems

Festoon Cable also known as flat portable cord, is used for the supply of power and control signals on cranes, hoists and festoon cable systems where the cable hangs freely, sees extreme flexing and environmental elements. Also available in round constructions, flat cables are typically used as they perform well in tight spaces and when high flexing will occur. Offered in black and yellow neoprene and PVC jackets, these cables are designed to withstand harsh elements both inside and outdoors.

Types

Flat and Round Festoon Cable

Elettrotek Kabel FLEXIFESTOON® PV-FLAT UL, flat festoon cable

  • Jacket: PVC, yellow

  • Insulation: special PVC, color coded

  • Voltage: 600V

  • Certifications: UL Festoon, AWM 105C 600V, CSA Festoon 105C 600V

  • Range: AWG 16 – 2/0; up to 12 conductors

  • Spec Sheet

Elettrotek Kabel FLEXIFESTOON® NE-FLAT UL (NGFLGOU)

  • Jacket: PVC, black

  • Insulation: special PVC, color coded

  • Voltage: 600V

  • Certifications: UL Festoon, AWM 105C 600V, CSA Festoon 105C 600V

  • Range: AWG 16 – 2/0; up to 12 conductors

  • Spec Sheet

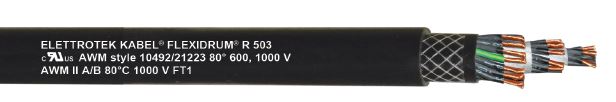

Elettrotek Kabel FLEXIDRUM® R 503, PUR, round festoon cable

  • Jacket: PUR, black

  • Insulation: GAALTHERM® 585 insulation, black

  • Voltage: 1000V

  • Certifications: UL AWM 10492/21223, CE

  • Range: AWG 16 – 2/0; up to 36 conductors, 3 ground designs

  • Spec Sheet

TPC Trex-Onics® Flat Festoon cable

  • Jacket: TPU, yellow

  • Insulation: Fluoropolymer, color coded

  • Shielding: Unshielded

  • Voltage: 600V

  • Certifications: RoHS

  • Range: AWG 16 – 6; up to 12 conductors

  • Spec Sheet

James Monroe Flat Festoon cable

  • Jacket: PVC, yellow

  • Insulation: PVC, color coded

  • Shielding: Unshielded

  • Voltage: 600V

  • Certifications: UL Festoon, CSA

  • Range: AWG 16 – 2/0; up to 12 conductors

  • Spec Sheet

Search ALL FESTOON Cable Configurations
