VFD Cable:

4 Conductor with Ground

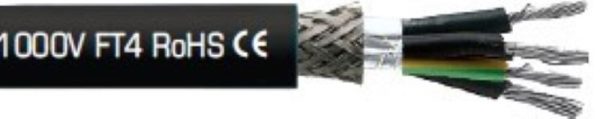

VFD Cable 4 conductors with ground are for standard 3-phase termination with three power conductors and one green/yellow ground conductor for a total of four conductors. Designed with XLPE insulation. NFPA 79 2018 article 4.4.2.8 suggests the use of XLPE insulation, a low capacitance, thermoset insulation between your VFD and motor. Available in both standard Flexible for stationary installations and High Flex for continuous flexing applications.​

VFD Cable Configurations

Flexible VFD Cable



High Flex VFD Cable



4 Conductor VFD Cable Series

LUTZE DRIVEFLEX® VFD, A106

  • Jacket: PVC, black

  • Insulation: XLPE type XHHW-2, black

  • Shielding: foil tape, tinned copper braid and drain wire

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible VFD Servo, 600V TC-ER-JP, AWM 105C°

  • Range: AWG 18 – 8; (4) conductors

Elettrotek Kabel GAALFLEX® Tray VFD 1405

  • Jacket: special PVC, black

  • Insulation: special XLPE insulation, black

  • Shielding: aluminum tape, PETP foil and tinned copper braid

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible Motor Supply, WTTC, 600V TC-ER; CE

  • Range: AWG 14 – 350 MCM

LAPP OLFLEX® VFD SLIM

  • Jacket: PVC/TPE, gray

  • Insulation: special PVC “Lapp Surge Guard”, black

  • Shielding: foil tape, tinned copper braid

  • Voltage: 600/1000V

  • Certifications: UL TC-ER, MTW, WTTC, AWM 20886, CSA, CE

  • Range: AWG 18 -2;  (4) conductors

LUTZE DRIVEFLEX® VFD, A216

  • Jacket: PVC, black

  • Insulation: XLPE type RHW-2, black

  • Shielding: foil tape, tinned copper braid, drain wire

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible VFD Servo, 600V TC-ER-JP, AWM 105C°

  • Range: AWG 16 – 2

HELUKABEL TOPFLEX® 600 VFD

  • Jacket: PVC, black

  • Insulation: XLPE, black

  • Shielding: foil and tinned braid

  • Voltage: 600/1000V

  • Certifications: UL TC-ER, WTTC, FLEXIBLE MOTOR SUPPLY, CSA, CE

  • Range: AWG 18 -2;  (4) conductors

LAPP OLFLEX® VFD XL

  • Jacket: special TPE, black

  • Insulation: XLPE, black

  • Shielding: foil tape, tinned copper braid

  • Voltage: 600/2000V

  • Certifications: UL TC-ER, CSA, CE

  • Range: AWG 16 -2;  (4) conductors

BELDEN Classic 300%® Ground Foil/Braid Design VFD Cable

  • Jacket: PVC, black

  • Insulation: XLPE type RHW-2, black

  • Shielding: foil and tinned copper braid

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible Motor Supply, WTTC, CSA AWM, 600V TC-ER; CE

  • Range: AWG 14 – 2 AWG up to 4 conductors

LAPP OLFLEX® VFD 2XL

  • Jacket: special TPE, black

  • Insulation: XLPE, black

  • Shielding: foil tape, tinned copper braid

  • Voltage: 600/1000V

  • Certifications: UL TC-ER, CSA, CE

  • Range: AWG 16 -2;  (4) conductors

4 Conductor Continuous Flex VFD Cable Series

LUTZE MOTIONFLEX® Motor TPE

  • Jacket: special TPE, black

  • Insulation: XLPE type XHHW-2, black

  • Shielding: tinned copper braid, flat braid drain wire

  • Voltage: 1000V

  • Certifications: UL TC-ER, AWM 21270, Flexible Motor Supply, WTTC

  • Range: AWG 16 – 4, up to 4 conductors

BELDEN Classic 300%® Continuous Flex VFD Cable

  • Jacket: PVC, black

  • Insulation: XLPE type RHW-2, black

  • Shielding: foil and tinned copper braid

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible Motor Supply, WTTC, CSA AWM, 600V TC-ER; CE

  • Range: AWG 14 – 2 AWG up to 4 conductors

LAPP OLFLEX® FD VFD

  • Jacket: special TPE, black

  • Insulation: special PVC, black

  • Shielding: foil tape, tinned copper braid

  • Voltage: 600/1000V

  • Certifications: UL TC-ER, MTW, AWM 20886, CSA, CE

  • Range: AWG 14 -10;  (4) conductors
