VFD Cable

between electric motor and Variable Frequency Drives

VFD Cable as designed with XLPE insulation to withstand high voltage spikes, high electrical noise levels, charging currents, heat and other adverse environmental conditions that standard THHN/PVC insulated cables cannot. NFPA 79 2018 article 4.4.2.8 suggests the use of XLPE insulation, a low capacitance, thermoset insulation between your VFD and motor and Right Hand Industrial can help select the right one for your application and budget. Not using a VFD? Browse 600V and 1000V rated Motor Supply Cable.

VFD Cable Configurations

4 Conductor VFD Cable Series

LUTZE DRIVEFLEX® VFD, A106

  • Jacket: PVC, black

  • Insulation: XLPE type XHHW-2, black

  • Shielding: foil tape, tinned copper braid and drain wire

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible VFD Servo, 600V TC-ER-JP, AWM 105C°

  • Range: AWG 18 – 8; (4) conductors

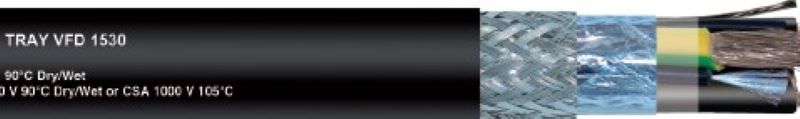

Elettrotek Kabel GAALFLEX® Tray VFD 1405

  • Jacket: special PVC, black

  • Insulation: special XLPE insulation, black

  • Shielding: aluminum tape, PETP foil and tinned copper braid

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible Motor Supply, WTTC, 600V TC-ER; CE

  • Range: AWG 14 – 350 MCM

LAPP OLFLEX® VFD SLIM

  • Jacket: PVC/TPE, gray

  • Insulation: special PVC “Lapp Surge Guard”, black

  • Shielding: foil tape, tinned copper braid

  • Voltage: 600/1000V

  • Certifications: UL TC-ER, MTW, WTTC, AWM 20886, CSA, CE

  • Range: AWG 18 -2;  (4) conductors

LUTZE DRIVEFLEX® VFD, A216

  • Jacket: PVC, black

  • Insulation: XLPE type RHW-2, black

  • Shielding: foil tape, tinned copper braid, drain wire

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible VFD Servo, 600V TC-ER-JP, AWM 105C°

  • Range: AWG 16 – 2

HELUKABEL TOPFLEX® 600 VFD

  • Jacket: PVC, black

  • Insulation: XLPE, black

  • Shielding: foil and tinned braid

  • Voltage: 600/1000V

  • Certifications: UL TC-ER, WTTC, FLEXIBLE MOTOR SUPPLY, CSA, CE

  • Range: AWG 18 -2;  (4) conductors

LAPP OLFLEX® VFD XL

  • Jacket: special TPE, black

  • Insulation: XLPE, black

  • Shielding: foil tape, tinned copper braid

  • Voltage: 600/2000V

  • Certifications: UL TC-ER, CSA, CE

  • Range: AWG 16 -2;  (4) conductors

BELDEN Classic 300%® Ground Foil/Braid Design VFD Cable

  • Jacket: PVC, black

  • Insulation: XLPE type RHW-2, black

  • Shielding: foil and tinned copper braid

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible Motor Supply, WTTC, CSA AWM, 600V TC-ER; CE

  • Range: AWG 14 – 2 AWG up to 4 conductors

LAPP OLFLEX® VFD 2XL

  • Jacket: special TPE, black

  • Insulation: XLPE, black

  • Shielding: foil tape, tinned copper braid

  • Voltage: 600/1000V

  • Certifications: UL TC-ER, CSA, CE

  • Range: AWG 16 -2;  (4) conductors

4 Conductor Continuous Flex VFD Cable Series

LUTZE MOTIONFLEX® Motor TPE

  • Jacket: special TPE, black

  • Insulation: XLPE type XHHW-2, black

  • Shielding: tinned copper braid, flat braid drain wire

  • Voltage: 1000V

  • Certifications: UL TC-ER, AWM 21270, Flexible Motor Supply, WTTC

  • Range: AWG 16 – 4, up to 4 conductors

BELDEN Classic 300%® Continuous Flex VFD Cable

  • Jacket: PVC, black

  • Insulation: XLPE type RHW-2, black

  • Shielding: foil and tinned copper braid

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible Motor Supply, WTTC, CSA AWM, 600V TC-ER; CE

  • Range: AWG 14 – 2 AWG up to 4 conductors

LAPP OLFLEX® FD VFD

  • Jacket: special TPE, black

  • Insulation: special PVC, black

  • Shielding: foil tape, tinned copper braid

  • Voltage: 600/1000V

  • Certifications: UL TC-ER, MTW, AWM 20886, CSA, CE

  • Range: AWG 14 -10;  (4) conductors

3 Conductor + 3 Grounds VFD Cable Series

LUTZE DRIVEFLEX® A220 (3) Symmetrical GNDs

  • Jacket: PVC, black

  • Insulation: XLPE type XHHW-2, black

  • Shielding: foil tape, overall tinned copper braid

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible VFD Servo, 600V TC-ER-JP, AWM 105C°

  • Range: AWG 6 – 500 MCM, up to 3 conductors

Elettrotek Kabel GAALFLEX® VFD 1405 (3) Symmetrical GNDs

  • Jacket: special PVC, black

  • Insulation: special XLPE, black

  • Shielding: aluminum tape, PETP foil and tinned copper braid

  • Voltage: 1000V

  • Certifications: 1000V UL Flexible Motor Supply, WTTC, 600V TC-ER; CE

  • Range: AWG 10 – 500 MCM

HELUKABEL TOPFLEX® 1000 VFD – 3 Symmetrical GND

  • Jacket: TPE, black

  • Insulation: XLPE, black

  • Shielding: foil and tinned braid

  • Voltage: 600/1000V

  • Certifications: UL TC-ER, WTTC, FLEXIBLE MOTOR SUPPLY, CSA, CE

  • Range: AWG 8 – 500MCM;  (3) conductors + (3) grounds

BELDEN Classic 100%® (3) Symmetrical GND VFD Cable, Large AWG

  • Jacket: PVC, black

  • Insulation: XLPE type XHHW-2, black, (bare grounds)

  • Shielding: two spiral tape

  • Voltage: 1000V

  • Certifications: 1000V UL Flexible Motor Supply, WTTC, CSA AWM, 600V TC-ER; CE

  • Range: AWG 1 – 4/0 AWG up to 3 conductors

4 Conductor + 1 Signal Pair VFD Cable Series

LUTZE DRIVEFLEX®  A107 with (1) signal pair

  • Jacket: PVC, black

  • Insulation: XLPE type XHHW-2, black

  • Shielding: foil tape, overall tinned copper braid (foil for pairs)

  • Voltage: 600V / 1000V

  • Certifications: UL Flexible VFD Servo, 600V TC-ER-JP, AWM 105C°

  • Range: AWG 18 – 8, (4) conductors plus 1 pair

LUTZE DRIVEFLEX® A217 with (1) signal pair

  • Jacket: PVC, black

  • Insulation: XLPE type RHW-2, black

  • Shielding: foil tape, overall tinned copper braid (foil for pairs)

  • Voltage: 600V / 1000V

  • Certifications: UL Flexible VFD Servo, 600V TC-ER-JP, AWM 105C°

  • Range: AWG 16 – 2; (4) conductor plus 1 pair

Elettrotek Kabel GAALFLEX® VFD 1405 with (1) signal pair

  • Jacket: special PVC, black

  • Insulation: special XLPE, black

  • Shielding: aluminum tape, PETP foil and overall tinned copper braid (same for pairs)

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible Motor Supply, WTTC, 600V TC-ER, CE

  • Range: AWG 14 – 2/0; (4) conductors plus 1 pair

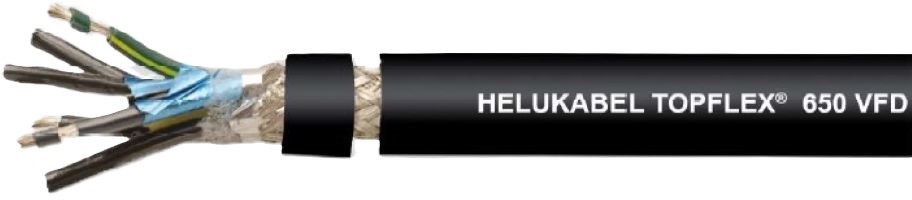

HELUKABEL TOPFLEX® 650 VFD w/ control pairs

  • Jacket: TPE, black

  • Insulation: XLPE, black

  • Shielding: foil and tinned braid

  • Voltage: 600/1000V

  • Certifications: UL TC-ER, WTTC, FLEXIBLE MOTOR SUPPLY, CSA, CE

  • Range: AWG 16 – 4; (4) conductor plus 1 pair

4 Conductor + 2 Signal Pairs VFD Cable Series

LUTZE DRIVEFLEX® A218 with (2) control pairs

  • Jacket: PVC, black

  • Insulation: XLPE type RHW-2, black

  • Shielding: foil tape, overall tinned copper braid (foil for pairs)

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible VFD Servo, 600V TC-ER-JP, AWM 105C°

  • Range: AWG 16 – 8; (4) conductor plus 2 pairs

Elettrotek Kabel GAALFLEX® VFD 1405 with (2) control pairs

  • Jacket: special PVC, black

  • Insulation: special XLPE, black

  • Shielding: aluminum tape, PETP foil and tinned copper braid (foil for pairs)

  • Voltage: 600V / 1000V

  • Certifications: 1000V UL Flexible Motor Supply, WTTC, 600V TC-ER, CE

  • Range: AWG 14 – 2; (4) conductor plus 2 pairs

HELUKABEL TOPFLEX® 650 VFD w/ 2 control pairs

  • Jacket: TPE, black

  • Insulation: XLPE, black

  • Shielding: foil and tinned braid

  • Voltage: 600/1000V

  • Certifications: UL TC-ER, WTTC, FLEXIBLE MOTOR SUPPLY, CSA, CE

  • Range: AWG 16 – 4; (4) conductor plus 2 pairs
