Servo Motor Cables

cables for power supply and signal transmission to electric motors

Servo Motor Cables are designed to carrying power and control signals to electric motors and feedback devices for positioning and process control. Configurations include (4) conductors with one ground plus one or two signal pairs for feedback and monitoring devices. Hybrid cables are also available combining both power and motor-feedback capabilities in one cable for specific systems such as Siemens, Allen-Bradley and Bosch Rexroth. See also Feedback Cables for feedback only cables.

Servo Motor Cable Types

Flexible 4C Servo Motor Cable (Stationary applications)

LUTZE SILFLEX® M Motor TPE

  • Jacket: TPE jacket, orange

  • Insulation: PVC/Nylon insulation, color code

  • Shielding: overall tinned copper braid (foil for pairs)

  • Voltage: 1000V

  • Certifications: UL Flexible Motor Supply, 600V TC-ER, MTW, AWM 105C°

  • Range: AWG 16 – 2;  4 conductors

LAPP ÖLFLEX® SERVO 719 CY

  • Jacket: PVC, orange

  • Insulation: PP, black/numbered

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM, CSA

  • Range: AWG 16 – 1; 4 conductors

  • Spec Sheet

SAB SL 860 C

  • Jacket: PVC, orange

  • Insulation: polymer, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CE

  • Range: AWG 16 – 1; 4 conductors

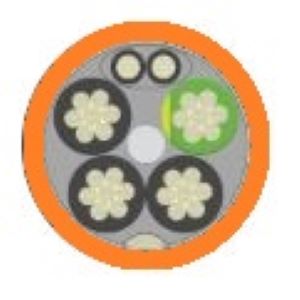

Flexible 4C + Signal Pairs Servo Motor Cable (Stationary applications)

LUTZE SILFLEX® M Motor TPE with control pair

  • Jacket: TPE jacket, orange

  • Insulation: PVC/Nylon insulation, color code

  • Shielding: overall tinned copper braid (foil for pairs)

  • Voltage: 1000V

  • Certifications: UL Flexible Motor Supply, 600V TC-ER, MTW, AWM 105C°

  • Range: AWG 16 – 2;  (4) conductors + 1  control pair

SAB SL 863 C

  • Jacket: PVC, orange

  • Insulation: polymer, black

  • Shielding: tinned copper braid; shielded pairs

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CE

  • Range: AWG 16 – 2; 4 conductor + 1-pair

High Flex 4C Servo Motor Cable Series

TECNIKABEL USA TKFF390 SERVO

  • Jacket: PUR, orange

  • Insulation: polyolefin, black

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 21209 90C°, CSA AWM

  • Range: AWG 18 – 2; (4) conductors

GAALFLEX® SERVO T 834 C

  • Jacket: PUR, orange

  • Insulation: TPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 21223 80C°, CSA AWM

  • Range: AWG 19 – 1; (4) conductors

HELUKABEL TOPSERV® 600 VFD

  • Jacket: TPE, orange

  • Insulation: special XLPE insulation, black

  • Shielding: tinned copper braid shield

  • Voltage: 600/1000V

  • Certifications: 90°C UL TC-ER, WTTC, PLTC-ER

  • Range: AWG 18 – 2; (4) conductors

LUTZE SUPERFLEX® Plus M PUR

  • Jacket: PUR, orange

  • Insulation: special TPE insulation, black

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 80C°

  • Range: AWG 18 – 1; (4) conductors

SAB SL 834 C

  • Jacket: PUR, orange

  • Insulation: polymer, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CE

  • Range: AWG 16 – 1; 4 conductor

SAB SL 833 C

  • Jacket: PUR, orange

  • Insulation: TPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CSA, CE

  • Range: AWG 16 – 1; 4 conductor

Igus chainflex® CF270.UL.D Servo PUR

  • Jacket: PUR, orange

  • Insulation: XLPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM

  • Range: AWG 18 – 2; 4 conductors

Igus chainflex® CF27-D Servo PUR

  • Jacket: PUR, orange (TPE inner jacket)

  • Insulation: XLPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 80°C

  • Range: AWG 18 – 1; 4 conductors

High Flex 4C + Signal Pairs Servo Motor Cable Series

TECNIKABEL USA TKFF390 SERVO

  • Jacket: PUR, orange

  • Insulation: polyolefin, black

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 21209 90C°, CSA AWM

  • Range: AWG 18 – 2; (4) conductors + 1 or 2 control pairs

GAALFLEX® SERVO T 844 C

  • Jacket: PUR, orange

  • Insulation: TPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 21223 80C°, CSA AWM

  • Range: AWG 19 – 1; (4) conductors + 1 or 2 signal pairs

SAB SL 841 C

  • Jacket: PUR, orange

  • Insulation: TPE, black

  • Shielding: tinned copper braid; shielded pairs

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CSA, CE

  • Range: AWG 19 – 1; 4 conductor + signal pair(s)

SAB SL 871 C

  • Jacket: TMPU orange

  • Insulation: polymer, black

  • Shielding: tinned copper braid; shielded pairs

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CSA, CE

  • Range: AWG 19 – 1; 4 conductor + signal pair(s)

LUTZE SUPERFLEX® Plus M PUR

  • Jacket: PUR, orange

  • Insulation: special TPE insulation, black

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 80C°

  • Range: AWG 18 – 1; (4) conductors + 1 or 2 control pairs

HELUKABEL TOPSERV® 650 VFD

  • Jacket: TPE, orange

  • Insulation: special XLPE insulation, black

  • Shielding: tinned copper braid shield

  • Voltage: 600/1000V

  • Certifications: 90°C UL TC-ER, WTTC, PLTC-ER

  • Range: AWG 18 – 2; (4) conductors + 1 & 2 Signal Pairs

Igus chainflex® CF270.UL.D Servo PUR

  • Jacket: PUR, orange

  • Insulation: XLPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM

  • Range: AWG 18 – 2; 4 conductors

Igus chainflex® CF27-D Servo PUR

  • Jacket: PUR, orange (TPE inner jacket)

  • Insulation: XLPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 80°C

  • Range: AWG 18 – 1; 4 conductors

LAPP ÖLFLEX® SERVO 719 CY

  • Jacket: PUR, orange

  • Insulation: polypropylene, color coded

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 21223 80C°, CSA AWM

  • Range: AWG 16 – 12; composite

  • Spec Sheet

Hybrid Servo Cable Series

TECNIKABEL TKFF390 Hybrid Servo

  • Jacket: PUR, orange

  • Insulation: polyolefin, color coded

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 21209 90C°, CSA AWM

  • Range: AWG 18 – 6; composite

Igus chainflex® CF280-UL-H Hybrid Servo PUR

  • Jacket: PUR, orange

  • Insulation: XLPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 80°C

  • Range: AWG 18 – 1; 4 conductors

SAB SL 875 C Hybrid

  • Jacket: TMPU, orange

  • Insulation: polymer, black

  • Shielding: tinned copper braid; shielded pairs

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CSA, CE

  • Range: AWG 20 – 6; 4 conductor + signal pair(s)

LAPP ÖLFLEX® SERVO FD 7DSL Hybrid

  • Jacket: PUR, orange

  • Insulation: polypropylene, color coded

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 21223 80C°, CSA AWM

  • Range: AWG 16 – 12; composite

  • Spec Sheet

Servo Feedback Cable Series

TECNIKABEL USA TKFF390 Encoder and Resolver Cable

  • Jacket: PUR jacket, green

  • Insulation: Polyolefin, color coded

  • Shielding: tinned copper braid

  • Voltage: 30V / 300V

  • Certifications: UL AWM 21209 300V, AWM 20672 30V, CSA

GAALFLEX® SERVO T 839 C Feedback

  • Jacket: PUR, green

  • Insulation: special polymer, color coded

  • Shielding: tinned copper braid shield

  • Voltage: 30V

  • Certifications: UL AWM 20236 80C° 3V, CE

  • Range: composite

LUTZE SILFLEX® TPE Feedback, Allen Bradley® systems

  • Jacket: TPE jacket, green

  • Insulation: PVC, color coded

  • Shielding: foil and tinned copper braid

  • Voltage: 300V / 600V

  • Certifications: UL PLTC 300V, CM 75C, AWM 90C 600V

LUTZE SUPERFLEX® PUR Feedback, Allen Bradley® systems and others

  • Jacket: PUR jacket, green

  • Insulation: TPE, color coded

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 21223 1000V 80C

LUTZE SUPERFLEX® PUR Feedback, Shielded for Siemens®, DRIVE-CLiQ® and other systems

  • Jacket: PUR jacket, green

  • Insulation: TPE, color coded

  • Shielding: tinned copper braid

  • Voltage: 30V

  • Certifications: UL AWM 20236

LUTZE SUPERFLEX® Plus PUR Feedback, Shielded for Bosch-Rexroth® and other systems

  • Jacket: PUR jacket, orange

  • Insulation: TPE, color coded

  • Shielding: tinned copper braid

  • Voltage: 300V

  • Certifications: UL AWM 20233 300V 80C

  • Spec Sheet
