Servo Motor Cable: 4 Conductor

4 Conductor Servo Motor Cables, made up of 3 power conductors and one green/yellow ground are designed to deliver power to electric motors. Servo motor cables generally have orange PVC, PUR or TPE jackets and are available in both standard flex for stationary applications and high flex for continuous flexing constructions. With the 4 conductor servo motor cable configuration, separate Feedback Cables would be needed for signal transmission in positioning and process control applications.

4 Conductor Servo Motor Cable Types

Flexible 4C Servo Motor Cable (Stationary applications)

LUTZE SILFLEX® M Motor TPE

  • Jacket: TPE jacket, orange

  • Insulation: PVC/Nylon insulation, color code

  • Shielding: overall tinned copper braid (foil for pairs)

  • Voltage: 1000V

  • Certifications: UL Flexible Motor Supply, 600V TC-ER, MTW, AWM 105C°

  • Range: AWG 16 – 2;  4 conductors

LAPP ÖLFLEX® SERVO 719 CY

  • Jacket: PVC, orange

  • Insulation: PP, black/numbered

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM, CSA

  • Range: AWG 16 – 1; 4 conductors

  • Spec Sheet

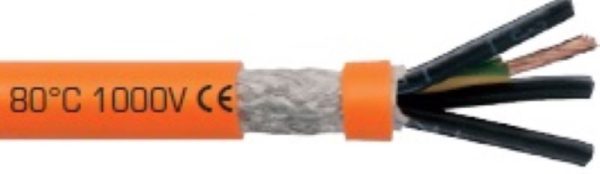

SAB SL 860 C

  • Jacket: PVC, orange

  • Insulation: polymer, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CE

  • Range: AWG 16 – 1; 4 conductors

High Flex 4C Servo Motor Cable Series

TECNIKABEL USA TKFF390 SERVO

  • Jacket: PUR, orange

  • Insulation: polyolefin, black

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 21209 90C°, CSA AWM

  • Range: AWG 18 – 2; (4) conductors

GAALFLEX® SERVO T 834 C

  • Jacket: PUR, orange

  • Insulation: TPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 21223 80C°, CSA AWM

  • Range: AWG 19 – 1; (4) conductors

HELUKABEL TOPSERV® 600 VFD

  • Jacket: TPE, orange

  • Insulation: special XLPE insulation, black

  • Shielding: tinned copper braid shield

  • Voltage: 600/1000V

  • Certifications: 90°C UL TC-ER, WTTC, PLTC-ER

  • Range: AWG 18 – 2; (4) conductors

LUTZE SUPERFLEX® Plus M PUR

  • Jacket: PUR, orange

  • Insulation: special TPE insulation, black

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 80C°

  • Range: AWG 18 – 1; (4) conductors

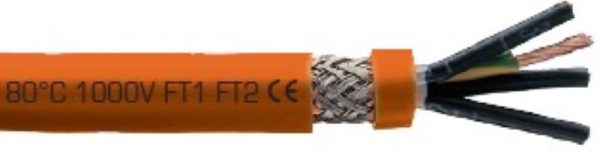

SAB SL 834 C

  • Jacket: PUR, orange

  • Insulation: polymer, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CE

  • Range: AWG 16 – 1; 4 conductor

SAB SL 833 C

  • Jacket: PUR, orange

  • Insulation: TPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CSA, CE

  • Range: AWG 16 – 1; 4 conductor

Igus chainflex® CF270.UL.D Servo PUR

  • Jacket: PUR, orange

  • Insulation: XLPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM

  • Range: AWG 18 – 2; 4 conductors

Igus chainflex® CF27-D Servo PUR

  • Jacket: PUR, orange (TPE inner jacket)

  • Insulation: XLPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 80°C

  • Range: AWG 18 – 1; 4 conductors
