Servo Motor Cable:

4 Conductor plus one signal pair

Servo Motor Cables with one signal pair are designed to deliver power and signal transmission to electric motors with one cable for positioning and process control. Configurations include three power conductors, one green/yellow ground and one twisted shielded control pair. Available in both standard Flexible for stationary applications and High Flex for continuous flexing applications

4 Conductor Servo Motor Cable Types

Flexible 4C + Signal Pairs Servo Motor Cable (Stationary applications)

LUTZE SILFLEX® M Motor TPE with control pair

  • Jacket: TPE jacket, orange

  • Insulation: PVC/Nylon insulation, color code

  • Shielding: overall tinned copper braid (foil for pairs)

  • Voltage: 1000V

  • Certifications: UL Flexible Motor Supply, 600V TC-ER, MTW, AWM 105C°

  • Range: AWG 16 – 2;  (4) conductors + 1  control pair

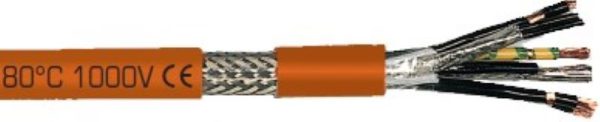

SAB SL 863 C

  • Jacket: PVC, orange

  • Insulation: polymer, black

  • Shielding: tinned copper braid; shielded pairs

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CE

  • Range: AWG 16 – 2; 4 conductor + 1-pair

High Flex 4C + Signal Pairs Servo Motor Cable Series

TECNIKABEL USA TKFF390 SERVO

  • Jacket: PUR, orange

  • Insulation: polyolefin, black

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 21209 90C°, CSA AWM

  • Range: AWG 18 – 2; (4) conductors + 1 or 2 control pairs

GAALFLEX® SERVO T 844 C

  • Jacket: PUR, orange

  • Insulation: TPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 21223 80C°, CSA AWM

  • Range: AWG 19 – 1; (4) conductors + 1 or 2 signal pairs

SAB SL 841 C

  • Jacket: PUR, orange

  • Insulation: TPE, black

  • Shielding: tinned copper braid; shielded pairs

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CSA, CE

  • Range: AWG 19 – 1; 4 conductor + signal pair(s)

SAB SL 871 C

  • Jacket: TMPU orange

  • Insulation: polymer, black

  • Shielding: tinned copper braid; shielded pairs

  • Voltage: 1000V

  • Certifications: UL AWM 80°C, CSA, CE

  • Range: AWG 19 – 1; 4 conductor + signal pair(s)

LUTZE SUPERFLEX® Plus M PUR

  • Jacket: PUR, orange

  • Insulation: special TPE insulation, black

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 80C°

  • Range: AWG 18 – 1; (4) conductors + 1 or 2 control pairs

HELUKABEL TOPSERV® 650 VFD

  • Jacket: TPE, orange

  • Insulation: special XLPE insulation, black

  • Shielding: tinned copper braid shield

  • Voltage: 600/1000V

  • Certifications: 90°C UL TC-ER, WTTC, PLTC-ER

  • Range: AWG 18 – 2; (4) conductors + 1 & 2 Signal Pairs

Igus chainflex® CF270.UL.D Servo PUR

  • Jacket: PUR, orange

  • Insulation: XLPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM

  • Range: AWG 18 – 2; 4 conductors

Igus chainflex® CF27-D Servo PUR

  • Jacket: PUR, orange (TPE inner jacket)

  • Insulation: XLPE, black

  • Shielding: tinned copper braid

  • Voltage: 1000V

  • Certifications: UL AWM 80°C

  • Range: AWG 18 – 1; 4 conductors

LAPP ÖLFLEX® SERVO 719 CY

  • Jacket: PUR, orange

  • Insulation: polypropylene, color coded

  • Shielding: tinned copper braid shield

  • Voltage: 1000V

  • Certifications: UL AWM 21223 80C°, CSA AWM

  • Range: AWG 16 – 12; composite

  • Spec Sheet
