High Flex Servomotor & Feedback Cable Assemblies

according to Siemens ® 6FX standards

for continuous flexing servomotor and feedback applications

Back to High Flex Cable Assemblies
Get a Quote

High flex Cable Assemblies are built according to Siemens® 6FX 8002 standards for continuous flexing servomotor and feedback applications. The cable and connectors are fully compatible with respective Siemens® systems and are offered in off the shelf configurations or with short lead-times and custom lengths. Flexible versions are also available.

If you need a custom assembly, send us your specs!

SINAMICS systems

Power only

Power with Brake

Feedback cable

SIMODRIVE systems

Power only

Power with Brake

Feedback cable

Extension Cable

without brake

with brake

Siemens ® 6FX8002 standard

for SINAMICS systems

Skip to SIMODRIVE systems

Back to Top

Power only for SINAMICS systems

Motor-end: Speed-Connect

Drive-end: SINAMICS Booksize connector

Speed-Connect motor-end, SINAMIC Booksize drive-end, without brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5CN01-1 _ _ 0 198326._ _ _ _ (4G1.5) 8.6
6FX8002-5CN11-1 _ _ 0 198327._ _ _ _ (4G2.5) 10.8
6FX8002-5CN21-1 _ _ 0 198328._ _ _ _ (4G1.5) 8.6
6FX8002-5CN31-1 _ _ 0 198329._ _ _ _ (4G2.5) 10.8
6FX8002-5CN41-1 _ _ 0 198330._ _ _ _ (4G4) 12.2
6FX8002-5CN51-1 _ _ 0 198331._ _ _ _ (4G6) 14.0
6FX8002-5CN61-1 _ _ 0 198332._ _ _ _ (4G10) 17.6

Motor-end: Full thread

Drive-end: SINAMICS Booksize connector

Full thread motor-end, SINAMICS Booksize drive-end, without brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5CS01-1 _ _ 0 198300._ _ _ _ (4G1.5) 8.6
6FX8002-5CS11-1 _ _ 0 198302._ _ _ _ (4G2.5) 10.8
6FX8002-5CS13-1 _ _ 0 198214._ _ _ _ (4G10) 17.6
6FX8002-5CS21-1 _ _ 0 198304._ _ _ _ (4G1.5) 8.6
6FX8002-5CS31-1 _ _ 0 198305._ _ _ _ (4G2.5) 10.8
6FX8002-5CS41-1 _ _ 0 198317._ _ _ _ (4G4) 12.2
6FX8002-5CS51-1 _ _ 0 198318._ _ _ _ (4G6) 14.0
6FX8002-5CS61-1 _ _ 0 198319._ _ _ _ (4G10) 17.6

Motor-end: Flying-leads

Drive-end: SINAMICS Booksize connector

Flying-leads motor-end, SINAMICS Booksize drive-end, without brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5CS02-1 _ _ 0 198301._ _ _ _ (4G1.5) 8.6
6FX8002-5CS12-1 _ _ 0 198303._ _ _ _ (4G2.5) 10.6
6FX8002-5CS42-1 _ _ 0 198306._ _ _ _ (4G4) 12.2
6FX8002-5CS52-1 _ _ 0 198307._ _ _ _ (4G6) 14.0
6FX8002-5CS62-1 _ _ 0 198308._ _ _ _ (4G10) 17.6

Motor-end: Full thread

Drive-end: Flying-leads

Full thread motor-end, flying leads drive-end, without brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5CG01-1 _ _ 0 198950._ _ _ _ (4G1.5) 8.6
6FX8002-5CG11-1 _ _ 0 198040._ _ _ _ (4G2.5) 10.8
6FX8002-5CG13-1 _ _ 0 198283._ _ _ _ (4G10) 17.6
6FX8002-5CG21-1 _ _ 0 198035._ _ _ _ (4G1.5) 8.6
6FX8002-5CG23-1 _ _ 0 198803._ _ _ _ (4G16) 21.2
6FX8002-5CG31-1 _ _ 0 198045._ _ _ _ (4G2.5) 10.8
6FX8002-5CG41-1 _ _ 0 198050._ _ _ _ (4G4) 12.2
6FX8002-5CG51-1 _ _ 0 198055._ _ _ _ (4G6) 14.0
6FX8002-5CG61-1 _ _ 0 198060._ _ _ _ (4G10) 17.6
6FX8002-5CS14-1 _ _ 0 198824._ _ _ _ (4G10) 17.6
6FX8002-5CS23-1 _ _ 0 198285._ _ _ _ (4G16) 21.2
6FX8002-5CS54-1 _ _ 0 198980._ _ _ _ (4G6) 14.0
6FX8002-5CS64-1 _ _ 0 198286._ _ _ _ (4G10) 17.6
6FX8002-5CS32-1 _ _ 0 198198._ _ _ _ (4G2.5) 10.8

Power with Brake for SINAMICS systems

Back to Top

Motor-end: Speed-Connect

Drive-end: SINAMICS Booksize connector

Speed-Connect motor-end, SINAMICS Booksize drive-end, with brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5DN01-1 _ _ 0 198333._ _ _ _ (4G1.5+2x1.5)) 11.4
6FX8002-5DN11-1 _ _ 0 198334._ _ _ _ (4G2.5+2x1.5)) 12.9
6FX8002-5DN21-1 _ _ 0 198335._ _ _ _ (4G1.5+2x1.5)) 11.4
6FX8002-5DN31-1 _ _ 0 198336._ _ _ _ (4G2.5+2x1.5)) 12.9
6FX8002-5DN41-1 _ _ 0 198337._ _ _ _ (4G4+2x1.5)) 14.5
6FX8002-5DN51-1 _ _ 0 198338._ _ _ _ (4G6+2x1.5))) 16.1
6FX8002-5DN61-1 _ _ 0 198339._ _ _ _ (4G10+2x1.5))) 19.5

Motor-end: Full thread

Drive-end: SINAMICS Booksize connector

Full thread motor-end, SINAMICS Booksize drive-end, with brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5DS01-1 _ _ 0 198310._ _ _ _ (4G1.5+2x1.5)) 11.4
6FX8002-5DS11-1 _ _ 0 198311._ _ _ _ (4G2.5+2x1.5)) 12.9
6FX8002-5DS13-1 _ _ 0 198247._ _ _ _ (4G10+2x1.5)) 19.5
6FX8002-5DS21-1 _ _ 0 198312._ _ _ _ (4G2.5+2x1.5)) 11.4
6FX8002-5DS31-1 _ _ 0 198313._ _ _ _ (4G4+1x1.5))) 12.9
6FX8002-5DS41-1 _ _ 0 198314._ _ _ _ (4G6+2x1.5)) 14.5
6FX8002-5DS51-1 _ _ 0 198315._ _ _ _ (4G10+2x1.5)) 16.1
6FX8002-5DS61-1 _ _ 0 198316._ _ _ _ (4G10+2x1.5)) 19.5

Motor-end: Full thread

Drive-end: Flying-leads

Full thread motor-end, flying leads drive-end, with brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5DG01-1 _ _ 0 198075._ _ _ _ (4G1.5+2x1.5)) 11.4
6FX8002-5DG11-1 _ _ 0 198085._ _ _ _ (4G2.5+2x1.5)) 12.9
6FX8002-5DG13-1 _ _ 0 198275._ _ _ _ (4G10+2x1.5)) 19.5
6FX8002-5DG21-1 _ _ 0 198080._ _ _ _ (4G1.5+2x1.5)) 11.4
6FX8002-5DG23-1 _ _ 0 198276._ _ _ _ (4G16+2x1.5)) 23.6
6FX8002-5DG31-1 _ _ 0 198090._ _ _ _ (4G2.5+2x1.5)) 12.9
6FX8002-5DG33-1 _ _ 0 198277._ _ _ _ (4G25+2x1.5)) 28.5
6FX8002-5DG41-1 _ _ 0 198095._ _ _ _ (4G4+2x1.5)) 14.5
6FX8002-5DG51-1 _ _ 0 198100._ _ _ _ (4G6+2x1.5)) 16.1
6FX8002-5DG61-1 _ _ 0 198115._ _ _ _ (4G10+2x1.5)) 19.5
6FX8002-5DS14-1 _ _ 0 198263._ _ _ _ (4G10+2x1.5)) 19.5
6FX8002-5DS23-1 _ _ 0 198267._ _ _ _ (4G16+2x1.5)) 23.6
6FX8002-5DS54-1 _ _ 0 198259._ _ _ _ (4G6+2x1.5)) 16.1
6FX8002-5DS64-1 _ _ 0 198262._ _ _ _ (4G10+2x1.5)) 19.5

Extension cable for SINAMICS systems

Back to Top

Motor-end: Full thread

Drive-end: Full thread / Speed-Connect

Extension cable, Full thread / Speed-Connect drive-end, Full thread motor-end, without brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5CA05-1 _ _ 0 198820._ _ _ _ (4G1.5) 8.6
6FX8002-5CA15-1 _ _ 0 198985._ _ _ _ (4G2.5) 10.8
6FX8002-5CA28-1 _ _ 0 198765._ _ _ _ (4G1.5) 8.6
6FX8002-5CA38-1 _ _ 0 198995._ _ _ _ (4G2.5) 10.8
6FX8002-5CA48-1 _ _ 0 198015._ _ _ _ (4G4) 12.2
6FX8002-5CA58-1 _ _ 0 198020._ _ _ _ (4G6) 14.0
6FX8002-5CA68-1 _ _ 0 198030._ _ _ _ (4G10) 17.6
6FX8002-5CX18-1 _ _ 0 198216._ _ _ _ (4G10) 17.6
6FX8002-5CX28-1 _ _ 0 198217._ _ _ _ (4G16) 21.2

Motor-end: Speed-Connect

Drive-end: Speed-Connect

Extension cable, Full thread / Speed-Connect drive-end, Full thread motor-end, without brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5CN05-1 _ _ 0 198204._ _ _ _ (4G1.5) 8.6

Motor-end: Full thread

Drive-end: Full thread / Speed-Connect

Extension cable, Full thread / Speed-Connect drive-end, Full thread motor-end, with brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5DA05-1 _ _ 0 198730._ _ _ _ (4G1.5+2x1.5)) 11.4
6FX8002-5DA15-1 _ _ 0 198990._ _ _ _ (4G2.5+2x1.5)) 12.9
6FX8002-5DA28-1 _ _ 0 198790._ _ _ _ (4G1.5+2x1.5)) 11.4
6FX8002-5DA38-1 _ _ 0 198800._ _ _ _ (4G2.5+2x1.5)) 12.9
6FX8002-5DA48-1 _ _ 0 198005._ _ _ _ (4G4+2x1.5)) 14.5
6FX8002-5DA58-1 _ _ 0 198010._ _ _ _ (4G6+2x1.5)) 16.1
6FX8002-5DA68-1 _ _ 0 198025._ _ _ _ (4G10+2x1.5)) 19.5
6FX8002-5DX18-1 _ _ 0 198248._ _ _ _ (4G10+2x1.5)) 19.5
6FX8002-5DX28-1 _ _ 0 198249._ _ _ _ (4G16+2x1.5)) 23.6
6FX8002-5DX38-1 _ _ 0 198252._ _ _ _ (4G25+2x1.5)) 28.5
6FX8002-5DX48-1 _ _ 0 198187._ _ _ _ (4G25+2x1.5)) 32.0
6FX8002-5DX58-1 _ _ 0 198254._ _ _ _ (4G25+2x1.5)) 37.3

Motor-end: Speed-Connect

Drive-end: Speed-Connect

Extension cable, Full thread / Speed-Connect drive-end, Full thread motor-end, with brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5DN05-1 _ _ 0 198735._ _ _ _ (4G1.5+(2x1.5)) 11.4

Feedback for SINAMICS / DRIVE-CLiQ® systems

Back to Top

Motor-end: DRIVE-CLIQ® RJ45

Drive-end: DRIVE-CLIQ® RJ45

DRIVE-CLIQ® drive-end, DRIVE-CLIQ® motor-end

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-2DC00-1 _ _ 0 198890._ _ _ _ 6.8
6FX8002-2DC10-1 _ _ 0 198900._ _ _ _ 6.8
6FX8002-2DC20-1 _ _ 0 198910._ _ _ _ 6.8

Siemens ® 6FX8002 standard

for SIMODRIVE systems

Back to Top

Power only for SIMODRIVE systems

Motor-end: Full thread

Drive-end: Flying-leads

Full thread motor-end, flying leads drive-end, without brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5CA01-1 _ _ 0 198360._ _ _ _ (4G1.5) 8.6
6FX8002-5CA11-1 _ _ 0 198380._ _ _ _ (4G2.5) 10.8
6FX8002-5CA13-1 _ _ 0 198845._ _ _ _ (4G10) 17.6
6FX8002-5CA21-1 _ _ 0 198400._ _ _ _ (4G1.5) 8.6
6FX8002-5CA23-1 _ _ 0 198810._ _ _ _ (4G16) 21.2
6FX8002-5CA31-1 _ _ 0 198410._ _ _ _ (4G2.5) 10.8
6FX8002-5CA41-1 _ _ 0 198430._ _ _ _ (4G4) 12.2
6FX8002-5CA51-1 _ _ 0 198440._ _ _ _ (4G6) 14.0
6FX8002-5CA61-1 _ _ 0 198450._ _ _ _ (4G10) 17.6

Power with Brake for SIMODRIVE systems

Back to Top

Motor-end: Full thread

Drive-end: Flying-leads

Full thread motor-end, flying leads drive-end, with brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-5DA01-1 _ _ 0 198460._ _ _ _ (4G1.5+2x1.5)) 11.4
6FX8002-5DA11-1 _ _ 0 198480._ _ _ _ (4G2.5+2x1.5)) 12.9
6FX8002-5DA13-1 _ _ 0 198840._ _ _ _ (4G10+2x1.5)) 19.5
6FX8002-5DA21-1 _ _ 0 198500._ _ _ _ (4G1.5+2x1.5)) 11.4
6FX8002-5DA23-1 _ _ 0 198870._ _ _ _ (4G16+2x1.5)) 23.6
6FX8002-5DA31-1 _ _ 0 198530._ _ _ _ (4G2.5+2x1.5)) 12.9
6FX8002-5DA33-1 _ _ 0 198880._ _ _ _ (4G25+2x1.5)) 28.5
6FX8002-5DA41-1 _ _ 0 198560._ _ _ _ (4G4+2x1.5)) 14.5
6FX8002-5DA43-1 _ _ 0 198349._ _ _ _ (4G35+2x1.5)) 32.0
6FX8002-5DA51-1 _ _ 0 198570._ _ _ _ (4G6+2x1.5)) 16.1
6FX8002-5DA61-1 _ _ 0 198580._ _ _ _ (4G10+2x1.5)) 19.5

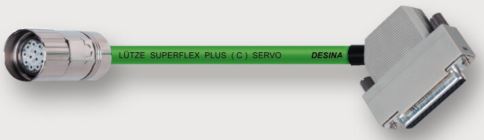

Feedback for SIMODRIVE systems

Back to Top

Motor-end: Full thread

Drive-end: Flying-leads

Full thread motor-end, flying leads drive-end, with brake

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-2AD00-1 _ _ 0 198110._ _ _ _ 8.6
6FX8002-1AH00-1 _ _ 0 198830._ _ _ _ 9.0
6FX8002-2CA11-1 _ _ 0 198120._ _ _ _ 9.0
6FX8002-2CA15-1 _ _ 0 198130._ _ _ _ 8.6
6FX8002-2CA31-1 _ _ 0 198628._ _ _ _ 9.5
6FX8002-2CA51-1 _ _ 0 198850._ _ _ _ 8.6
6FX8002-2CA61-1 _ _ 0 198150._ _ _ _ 8.6
6FX8002-2CB51-1 _ _ 0 198200._ _ _ _ 9.0
6FX8002-2CC11-1 _ _ 0 198210._ _ _ _ 9.0
6FX8002-2CD01-1 _ _ 0 198220._ _ _ _ 9.0
6FX8002-2CF02-1 _ _ 0 198240._ _ _ _ 8.6
6FX8002-2CG00-1 _ _ 0 198170._ _ _ _ 9.0
6FX8002-2CH00-1 _ _ 0 198250._ _ _ _ 8.6
6FX8002-2EQ10-1 _ _ 0 198280._ _ _ _ 9.5
6FX8002-2CA21-1 _ _ 0 198140._ _ _ _ 8.6
6FX8002-2CE07-1 _ _ 0 198260._ _ _ _ 9.0

Motor-end: Full thread

Drive-end: Flying-leads

Extension

Siemens designation Mfg Part Number Configuration Nom OD (mm)
6FX8002-2CA34-1 _ _ 0 198160._ _ _ _ 9.5
6FX8002-2CF04-1 _ _ 0 198740._ _ _ _ 8.6
6FX8002-2EQ14-1 _ _ 0 198700._ _ _ _ 9.5
6FX8002-2AD04-1 _ _ 0 198105._ _ _ _ 8.6
6FX8002-2CB54-1 _ _ 0 198295._ _ _ _ 9.0
Next
Back to products

Class K stranding according to ASTM B174 (172), is a AWM strand count making up individual conductors. For example, a 12AWG conductor with Class K stranding will consist of 65 strands of 30AWG copper wire.
