High Flex Servo Assemblies acc. to Allen-Bradley® 2090 standards

for continuous flexing servomotor and feedback applications

High flex Cable Assemblies are built according to Allen-Bradley® 2090 standards for continuous flexing servomotor and feedback applications. The cable and connectors are fully compatible with respective Allen-Bradley® systems and are offered in off the shelf configurations or with short lead-times and custom lengths. Flexible versions are also available. If it’s a custom assembly you seek, send us your specs!

according to Allen Bradley ® 2090

Single Cable Assembly – Power, Feedback only (without brake)

Motor-end: SpeedTec

Drive-end: flying leads

Speed-tec / Flying Leads, Single Cable Power + Feedback, without brake

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CSWM1DF-18AF_ _ 193371._ _ _ _ (4G1.0+(2xAWG22) 11.8
2090-CSWM1DF-14AF_ _ 193370._ _ _ _ (4G2.5+(2xAWG22) 14.0
2090-CSWM1DF-10AF_ _ 193376._ _ _ _ (4G6+(2xAWG22) 17.8

Motor-end: SpeedTec

Drive-end: flying leads (longer leads optimized for Kinetix 550 and 5700 drives)

Speed-tec / Flying Leads, Single Cable Power + Feedback, without brake

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CSWM1DG-18AF_ _ 193305._ _ _ _ (4G1.0+(2x0.75)+(2xAWG22) 11.8
2090-CSWM1DG-14AF_ _ 193310._ _ _ _ (4G2.5+(2x1.0)+(2xAWG22) 14.0

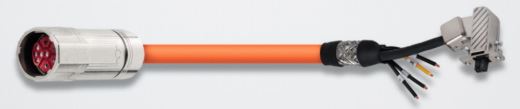

Motor-end: 2198-KITCON-DSL

Drive-end: flying lead power and pre-wired feedback connector kit (for Kinetix 5700 drives)

Speed-tec / Flying Leads, Single Cable Power + Feedback, without brake

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CSWM1DE-18AF_ _ 193379._ _ _ _ (4G1.0+(2xAWG22) 11.8
2090-CSWM1DE-14AF_ _ 193955._ _ _ _ (4G2.5+(2xAWG22) 14.0
2090-CSWM1DE-10AF_ _ 193967._ _ _ _ (4G6+(2xAWG22) 17.8

Single Cable Assembly – Power, Feedback and Brake

Motor-end: SpeedTec

Drive-end: flying leads

Speed-tec / Flying Leads, Single Cable Power + Feedback, without brake

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CSBM1DF-18AF_ _ 193366._ _ _ _ (4G1.0+(2x0.75)+(AWG22)) 11.8
2090-CSBM1DF-14AF_ _ 193364._ _ _ _ (4G2.5+(2x1.0)+(2xAWG22)) 14.0
2090-CSBM1DF-10AF_ _ 193375._ _ _ _ (4G6+(2x1.0)+(2xAWG22)) 17.8

Motor-end: SpeedTec

Drive-end: flying leads (longer leads optimized for Kinetix 550 or 5700 drives)

Speed-tec / Flying Leads, Single Cable Power + Feedback, without brake

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CSBM1DG-18AF_ _ 193300._ _ _ _ (4G1.0+(2x0.75)+(AWG22)) 11.8
2090-CSBM1DG-14AF_ _ 193302._ _ _ _ (4G2.5+(2x1.0)+(2xAWG22)) 14.0
2090-CSBM1DG-10AF_ _ 193304._ _ _ _ (4G6+(2x1.0)+(2xAWG22)) 17.8

Power only

Motor-end: SpeedTec

Drive-end: flying leads

SpeedTec / Flying Leads, Power only

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CPWM7DF-16AF_ _ 193309._ _ _ _ (4G1.5) 8.6
2090-CPWM7DF-14AF_ _ 193308._ _ _ _ (4G2.5) 10.8
2090-CPWM7DF-10AF_ _ 193307._ _ _ _ (4G6) 14.0
2090-CPWM7DF-08AF_ _ 193311._ _ _ _ (4G10) 17.6

Motor-end: DIN thread

Drive-end: flying leads

DIN thread / Flying Leads, Power only

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CPWM4DF-16AF_ _ 193303._ _ _ _ (4G1.5) 8.6
2090-CPWM4DF-14AF_ _ 193301._ _ _ _ (4G2.5) 10.8

Power with Brake

Motor-end: SpeedTec

Drive-end: flying leads

SpeedTec / Flying Leads, Power only

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CPBM7DF-16AF_ _ 193991._ _ _ _ (4G1.5+(2x1.5)) 11.4
2090-CPBM7DF-14AF_ _ 193957._ _ _ _ (4G2.5+(2x1.5)) 12.9
2090-CPBM7DF-10AF_ _ 193989._ _ _ _ (4G6+(2x1.5)) 16.1
2090-CPBM7DF-08AF_ _ 193355._ _ _ _ (4G10+(2x1.5)) 19.5

Motor-end: DIN thread

Drive-end: flying leads

DIN thread / Flying Leads, Power with brake

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CPBM4DF-16AF_ _ 193985._ _ _ _ (4G1.5+(2x1.5)) 12.9
2090-CPBM4DF-14AF_ _ 193983._ _ _ _ (4G2.5+(2x1.5)) 14.2

Extension Cable

Motor-end: SpeedTec

Drive-end: SpeecTec

Extension cable, SpeedTec, Power with brake

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CPBM47E7-16AF_ _ 193996._ _ _ _ (4G1.5+(2x1.5)) 11.4
2090-CPBM47E7-14AF_ _ 193360._ _ _ _ (4G2.5+(2x1.5)) 12.9
2090-CPBM47E7-10AF_ _ 193994._ _ _ _ (4G6+(2x1.5)) 16.1
2090-CPBM47E7-08AF_ _ 193361._ _ _ _ (4G10+(2x1.5)) 19.5

Feedback

Motor-end: SpeedTec

Drive-end: flying leads

Speed-tec / Flying Leads, Feedback

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CFBM7DF-CEAF_ _ 193977._ _ _ _ (5x2xAWG22) 9.2
2090-CFBM7DF-CDAF_ _ 193958._ _ _ _ (2xAWG16+2xAWG22+6x2xAWG26) 10.8

Motor-end: SpeedTec

Drive-end: D-Sub

Speed-tec / D-Sub, Feedback

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CFBM7DD-CEAF_ _ 193350._ _ _ _ (5x2xAWG22) 19.2

Motor-end: DIN thread

Drive-end: Flying-leads

DIN thread / Flying-leads, Feedback

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CFBM4DF-CDAF_ _ 193973._ _ _ _ (2xAWG16+2xAWG22+6x2xAWG26) 10.8

Motor-end: SpeedTec

Drive-end: D-Sub

Extension cable, Speed-tec / E7 connector

Allen-Bradley designation Mfg Part Number Configuration Nom OD (mm)
2090-CFBM7E7-CEAF_ _ 193979._ _ _ _ (5x2xAWG22) 9.2
2090-CFBM7E7-CDAF_ _ 193978._ _ _ _ (2xAWG16+2xAWG22+6x2cAWG26) 10.8
