W500-1X

500 MCM, 1 Conductor, Unshielded, EPR/CPE, 2000V Flexible Portable Cord, Type W RHH/RHW-2, TELE-FONIKA

Cut-to-length available; sold per foot (Qty = FT)

Brand: TELE-FONIKA
MPN: W500-1X
Attached PDF:

Description

500 MCM / 1 Conductor (0 GND incl.)

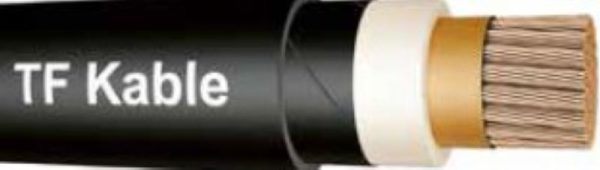

Bare Copper with Black and numbered EPR Insulation, Unshielded and a BLACK CPE Jacket. Rated 2000V UL E207132 , this Flexible Portable Cord is designed for fixed, stationary applications. Type W RHH/RHW-2 by TELE-FONIKA

Specifications

AWG 500 MCM
Conductors / Pairs 1 Conductor
Shielding Unshielded
Jacket CPE
Color BLACK
Insulation EPR
Flex Type Flexible
Series Type W RHH/RHW-2
Brand TELE-FONIKA

Technical Data

Voltage 2000V
Temperature Range -40°C ...+90°C
Conductor Material Bare Copper
Conductor Type Stranded

Approvals

UL UL Listed
UL Listings E207132
Spec Sheet is designed for fixed, stationary applications.
Cut-to-length available; sold per foot (Qty = FT)
<< Return to Products

12 + 5 =

Next
Back to products

Class K stranding according to ASTM B174 (172), is a AWM strand count making up individual conductors. For example, a 12AWG conductor with Class K stranding will consist of 65 strands of 30AWG copper wire.
